OCI - runtime spec introduction

OCIrunccontainer

This blog introduces runtime specification of OCI.

Preface

The Open Container Initiative (OCI) defines open industry standards for containers. OCI currently includes three specifications:

I will introduce the three OCI specifications in a series of articles, along with related software and tools, such as the widely used container runtime runc. This article will introduce some important concepts in the Runtime Specification (runtime-spec).

Overview

The OCI Runtime Specification aims to define the configuration, execution environment, and lifecycle of containers. A container’s configuration is defined in a file called config.json. The configuration consists of a general section and a platform-specific section. The general section refers to configuration items that are the same across all platforms, while the platform-specific section contains configurations unique to each platform (e.g., Linux-specific or Windows-specific settings). The execution environment ensures that applications inside containers have a consistent runtime across different runtimes (such as runc, crun, youki) and different environments.

Filesystem Bundle

The input to a container runtime is something called a filesystem bundle, not the more familiar container image. The relationship between the two will be covered in a later article about the OCI Image Specification. For now, we need to understand that a filesystem bundle is a set of files organized in a certain structure. A bundle mainly contains the following two components:

# 'config.json' file contains all container configuration. This file must be
# located at the top level of the bundle directory and must be named config.json.
config.json
# The 'rootfs' directory is container’s root filesystem. It is specified by
# root.path in config.json. Here we assume root.path="rootfs".
rootfs

In later articles, I will explain how to build a filesystem bundle from scratch and how to convert from a container image to a bundle.

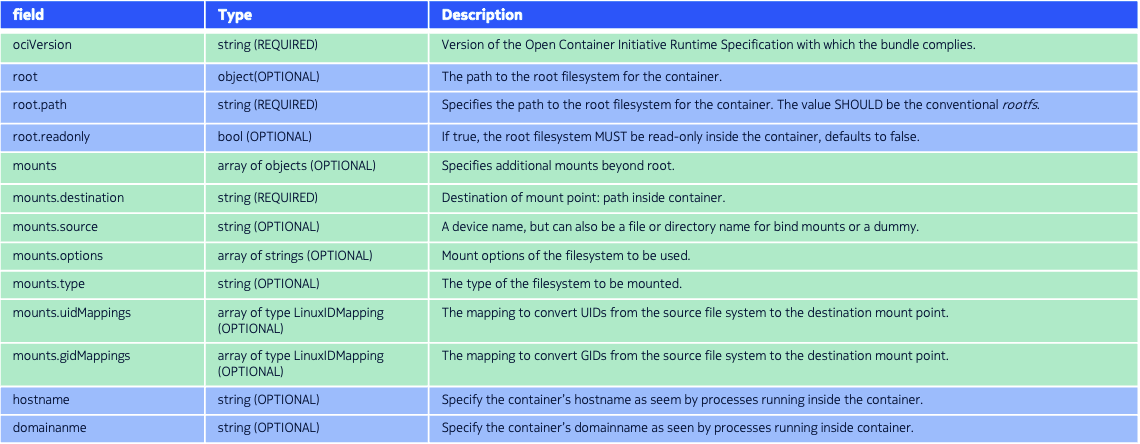

The config.json file contains various configurations for the container. The following table shows only a very small portion. Users rarely need to worry about these directly because they are usually generated and wrapped by higher-level tools. The table is just to give you a rough idea. For detailed configuration, see: https://github.com/opencontainers/runtime-spec/blob/main/config.md.

runtime config

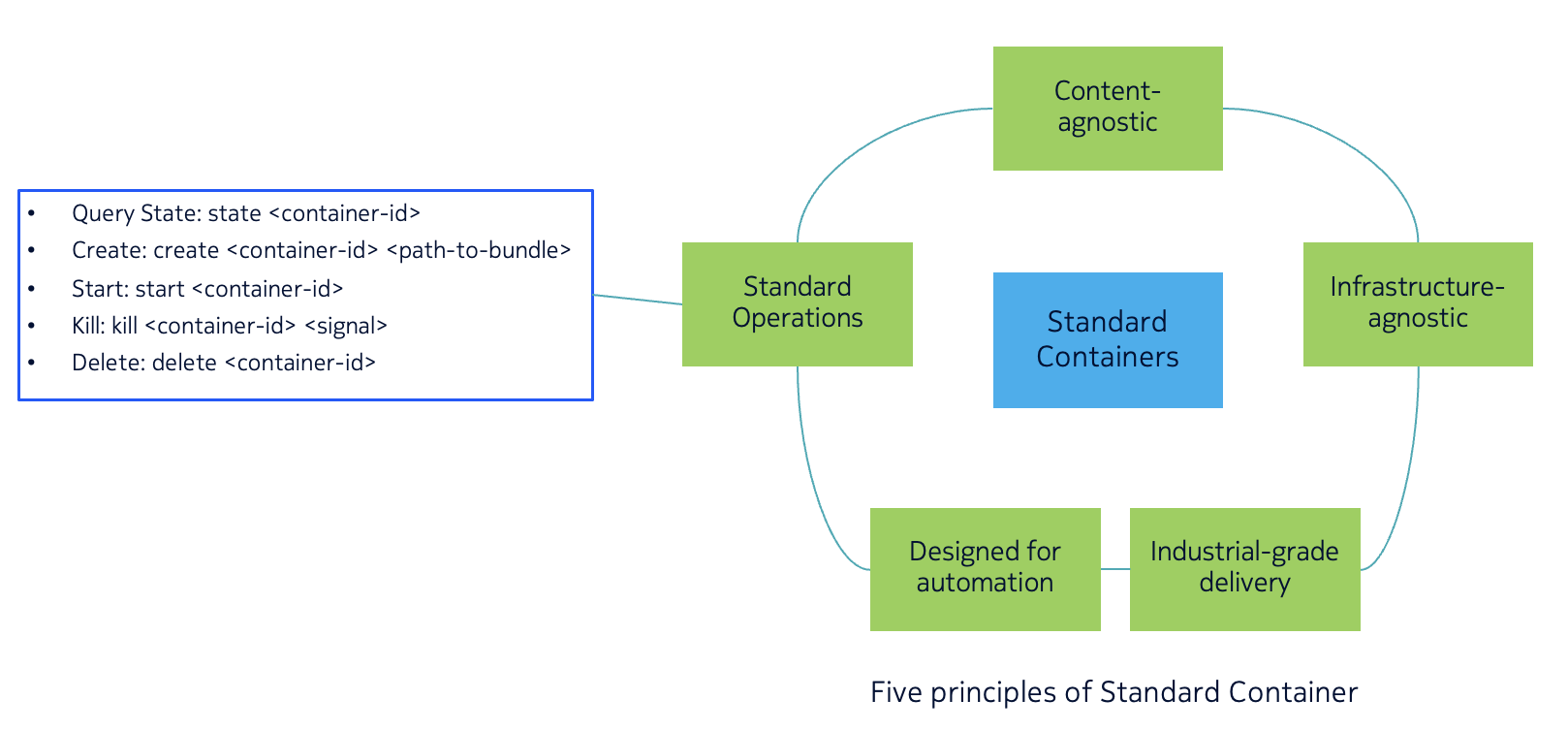

The Five Principles of a Standard Container

runc-5p

The five principles of a Standard Container are shown in the diagram above. Below are some details:

  1. A Standard Container defines a set of standard operations. Any OCI-compliant container runtime must support these operations.
  2. All standard operations must behave consistently, regardless of the software running inside the container.
  3. A Standard Container must be able to run on any platform supported by OCI.
  4. A Standard Container is automation-friendly. Since it provides standard operations, an encapsulated environment, and platform independence, it is naturally suitable for integration into automated workflows.
  5. A Standard Container enables production-quality delivery.

The Lifecycle of a Standard Container

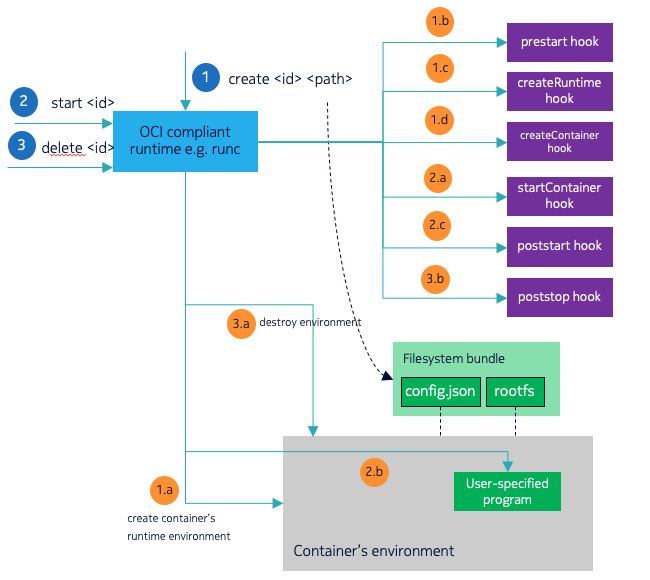

The lifecycle of a container is roughly as shown in the diagram below. Blue steps represent commands issued by the user to the OCI runtime (such as runc). Yellow steps represent internal runtime actions triggered by those commands. In real applications, the “user” here is not an individual but higher-level software — most commonly container runtimes compatible with the Kubernetes Container Runtime Interface (CRI), such as containerd or cri-o. Future articles will explain CRI and its relationship with OCI.

  • Step 1: The user issues a command to create a container: runc create <id> <path>. Here, id is the container identifier, and path points to the filesystem bundle.
  • runc creates the container runtime environment based on config.json in the bundle. It then sequentially calls the prestart hook, the createRuntime hook, and the createContainer hook. Actions like mounting files or devices into the container environment happen in these hooks.
  • Step 2: After creating the container, the user issues a start command: runc start <id>.
  • runc calls the startContainer hook, starts the user-specified program, then calls the poststart hook. At this point, the user’s program is actually running.
  • Step 3: When the container is no longer needed, the user deletes it with: runc delete <id>.
  • runc tears down the container environment and calls the poststop hook.

ctr lifecycle

Summary

This article introduced some important concepts from OCI’s Runtime Specification (runtime-spec). In the next article, we will walk through step by step how to configure and start an OCI container with runc.
